Images. The only other options would be to try and find a user man on ebay or in the glove box of one in a yard, or start pulling fuses and see what stopes working. Location of fuse boxes, fuse diagrams, assignment of the electrical fuses and relays in dodge vehicles.

Not Starting: I Have a D150 with Slant Six Motor. It Would ... from www.2carpros.com

Ase certified automotive parts specialist ; Where can i get a wiring diagram for the 2010 rams? It's the one along the side of the dash on the driver's side(inside, not under the hood).

2002 dodge ram 1500 wiring diagram | free wiring diagram.

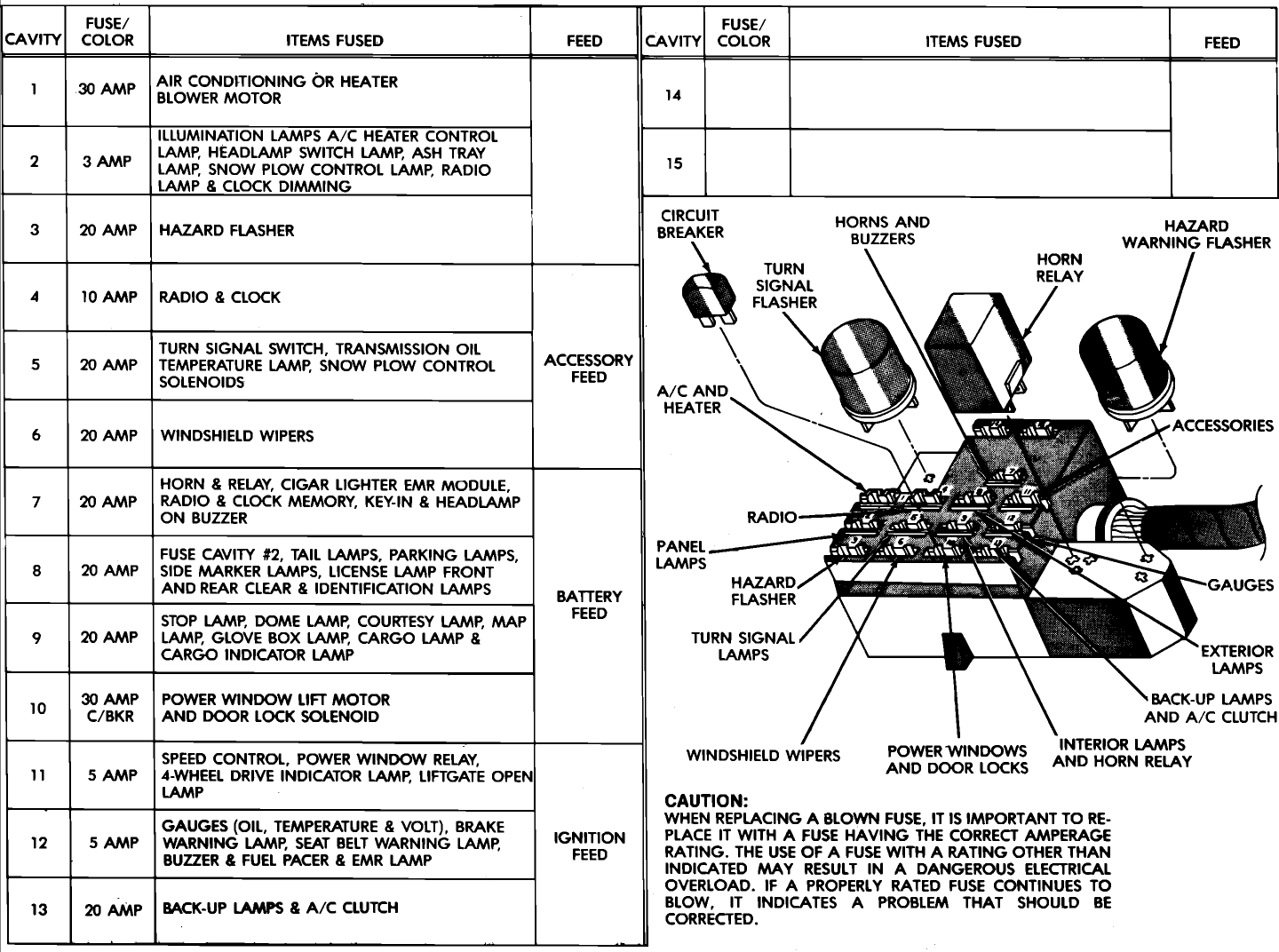

The fuse grabber is located near the front of the fusebox. Don't know if it's the same, but i have it. Thought i'd post a diagram of the fuse box for 1st gens. Stop lamps, windshield wiper, hazard lamp, 3rd brake light, headlamps, tail lamps, parking lamps, side marker lamps, instrument cluster illumination lamps, license plate lights, turn signal lights, back up lights, low.
